Itemunit Parameter

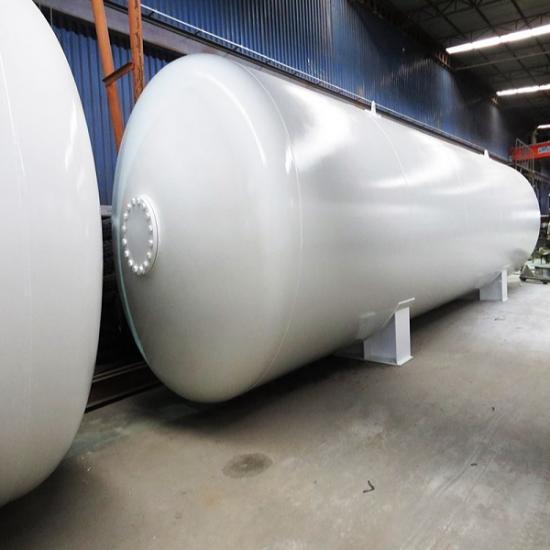

Products name: 50m3 & 60m3 lpg storage tank
Products number: CLG1600-10
Filling medium: LPG(propane)
Overall dimensions: mm9182*2728*3318 & 10962*2728*3318(L*W*H)
Tank size: (inner diameter*thickness*length)mm DN2700*14*9182/ 10962
Volumem: 350 m3 &60m3
Net weight（Kg）: 10640 & 11470
Volumem: 350 m3 &60m3
Net weight（Kg）: 10640 & 11470
Designing pressure Mps1.77
Working pressure： Mps≤1.6
Working temperature： ° C≤50
Hydraulic test pressure： Mps2.22
Air test pressure： Mps1.77
Air test pressure： Mps1.77
Material of tank and accessory Q345R,16MnIII
standard GB150 Steel pressure vessel, pressure vessel safety technology to monitor the procedur
Accessory：
1.Safety valve
2. magnetic flap liquid level gauge
3.pressure gauge
4.thermometer
5.cut-off valves
etc(the marked price is not including the accessory).
